Cutter Suction Dredgers
Cutter Suction Dredgers
The first three dredgers were specifically designed around local Middle East conditions, both climatological and geotechnical. Their electrical cutter drive and the sturdy design of the cutter ladder, spud carrier and pontoon allow these dredgers to be used not only in sand but also in moderately weak rock type materials.
The latest three additions were also prepared for the region. They complement the others for dredging in soft and medium dense sand, and are very suitable for smaller scale, shallow dredging requirements.
What we operate
8 items, listed as published. Figures are the company's own; nothing here is estimated.
- CSD “Khaleej Bay”Power / pipeline7,000 Hp/650mmApplicationDredging in soft & hard materialsSpecifications
- CSD “Baniyas Bay”Power / pipeline3,800 Hp/650mmApplicationDredging in loose type materialsSpecifications
- CSD “Deira Bay”Power / pipeline3,500 Hp/650mmApplicationDredging in soft & hard materialsSpecifications
- CSD “Garhoud Bay”Power / pipeline3,500 Hp/550mmApplicationDredging in soft & hard materialsSpecifications
- CSD “Hamriyah Bay”Power / pipeline1,600 Hp/500mmApplicationDredging in loose type materialsSpecifications
- CSD “Jumeirah Bay”Power / pipeline1,200 Hp/450mmApplicationDredging in loose type materialsSpecifications
- Dredge pump unitPower / pipeline600 Hp/300mmApplicationDredging loose sand & sediments
- Booster station — Hatta BayPower / pipeline2,500 Hp/650mmApplicationIncreasing pumping range
In service

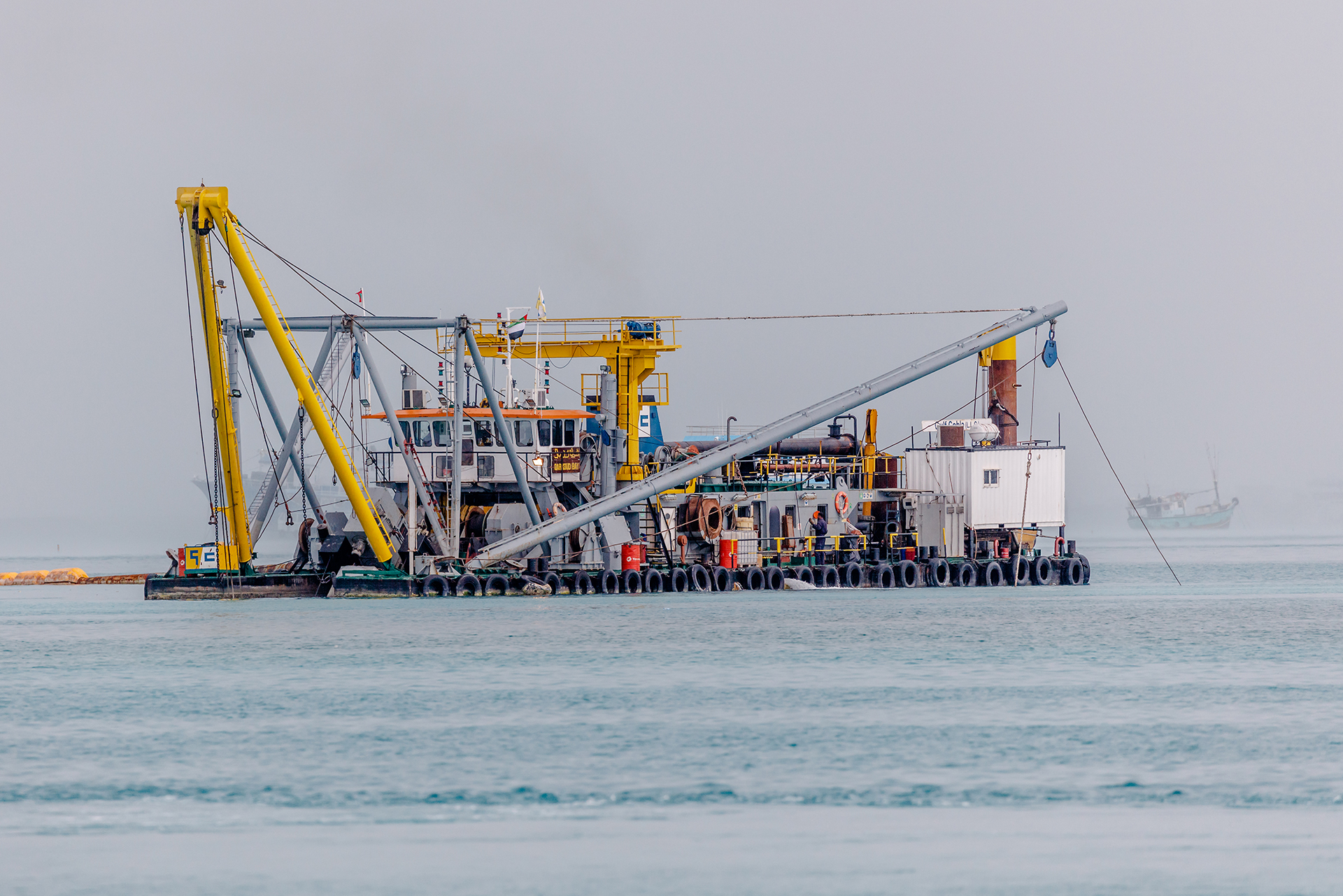

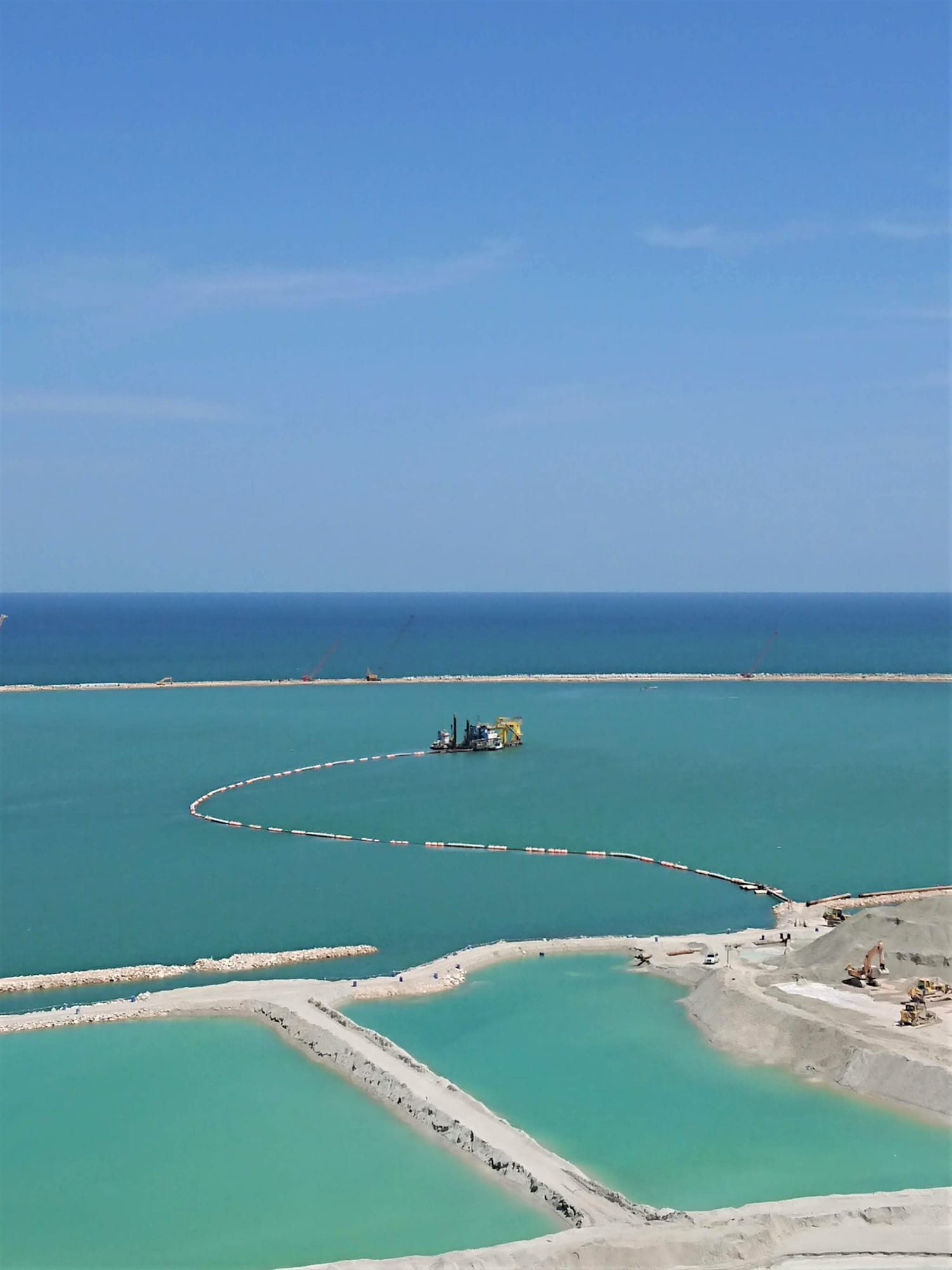

Cutter Suction Dredgers at work
Dredger comparison
Capacity is total installed power. UWP is an underwater pump. From the company profile equipment tables.
| Dredger | Drive | Capacity | Cutter | Depth | UWP | Suction | Discharge | Hull | Draft |
|---|---|---|---|---|---|---|---|---|---|

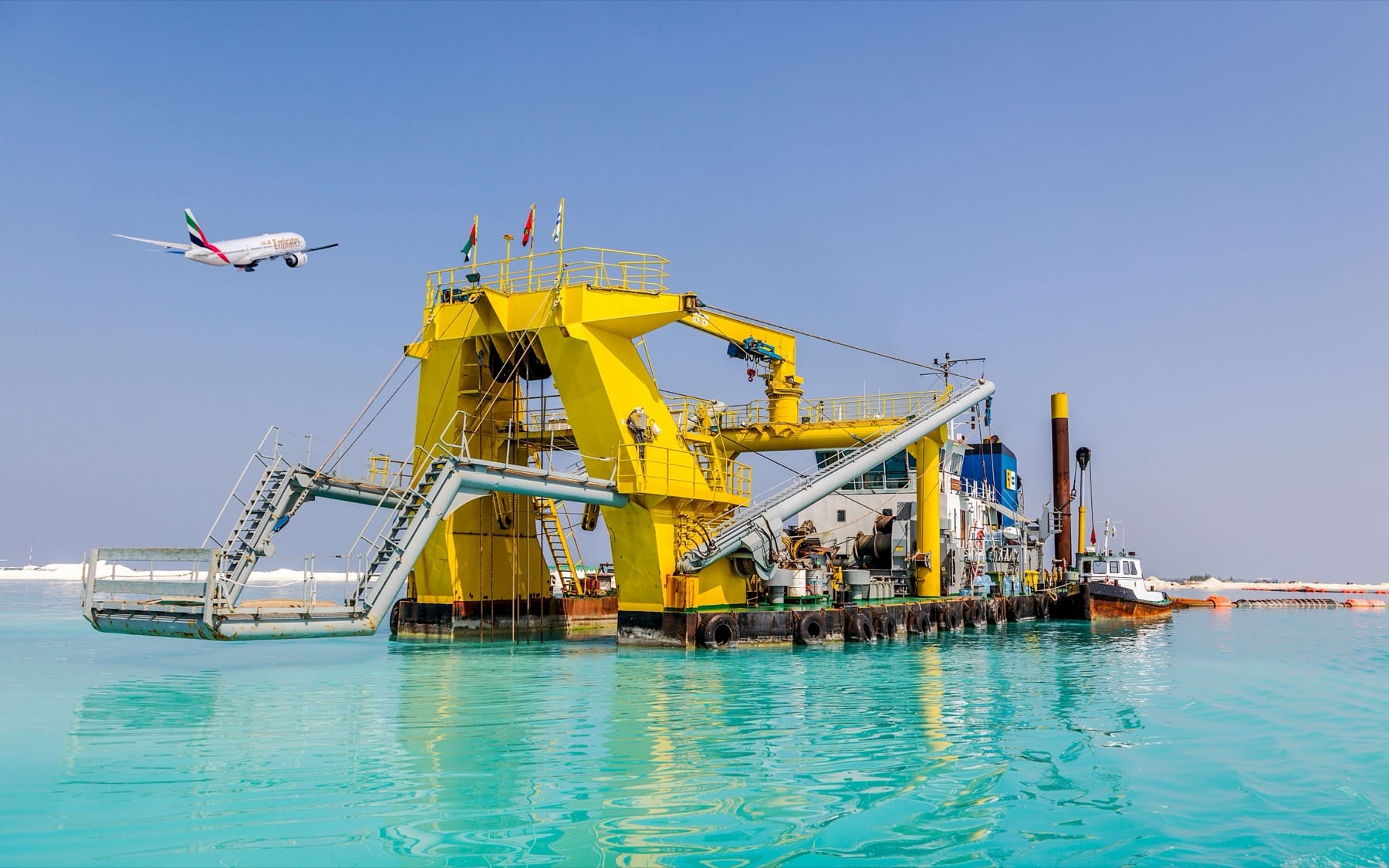

| Khaleej Bay | Electric | 5,100 kW | 920 kW | 18 m | Yes | 650 mm | 650 mm | 49.8 × 14.0 m | 2.2 m |
| Baniyas Bay | Hydraulic | 2,800 kW | 585 kW | 19 m | No | 700 mm | 650 mm | 45.3 × 10.3 m | 2.1 m |
| Deira Bay | Electric | 2,610 kW | 560 kW | 13 m | No | 650 mm | 650 mm | 41.0 × 12.0 m | 2.1 m |
| Garhoud Bay | Electric | 2,610 kW | 560 kW | 11 m | No | 600 mm | 550 mm | 39.5 × 12.0 m | 2.1 m |
| Hamriyah Bay | Hydraulic | 805 kW | 170 kW | 14 m | No | 500 mm | 500 mm | 22.0 × 8.0 m | 1.6 m |
| Jumeirah Bay | Hydraulic | 805 kW | 110 kW | 10 m | No | 450 mm | 450 mm | 16.5 × 6.7 m | 1.3 m |
Rest of the fleet
Everything Gulf Cobla owns and crews, grouped the way a project actually uses it.
